Distributed Deep Learning on Sunbird (Swansea HPC) - Scaling to 40× NVIDIA A100 GPUs

Table of Contents

Introduction
System Architecture Overview
Setting Up Remote Access
HPC Environment
System Resources
Job Scheduling with SLURM
Running Our First GPU Job
Distributed Multi-GPU Training
File Management and Workflows
Best Practices and Lessons Learned

Introduction

High-Performance Computing (HPC) clusters are essential infrastructure for modern computational research, particularly in deep learning and scientific computing. Unlike cloud platforms where you pay per hour, university HPC systems provide access to enterprise-grade hardware through shared, scheduled resources.

This guide documents my journey setting up and using Sunbird, Swansea University's HPC cluster, which features 40 NVIDIA A100 GPUs. Whether you're training transformer models, running simulations, or processing large datasets, understanding how to effectively use HPC infrastructure is a critical skill.

System Architecture Overview

Sunbird HPC Specifications

Compute Resources

GPU Nodes - 5 nodes (scs2041-2045)
GPUs per Node - 8× NVIDIA A100-PCIE-40GB
Total GPUs - 40 A100s
CPU per Node - 64 cores (AMD/Intel, varies by node)
RAM per Node - 515 GB (~64 GB per GPU)
Storage - Lustre parallel filesystem (231 TB shared)

There are other nodes for pure computation, and less powerful NVIDIA V100s as well.

Partitions (Queues)

Partition	GPUs	Time Limit	Purpose
accel_ai	A100	48 hours	Production training
accel_ai_dev	A100	2 hours	Development/testing
gpu	V100	48 hours	Alternative GPU option
compute	None	72 hours	CPU-only workloads

Architecture Design

HPC systems follow a head node + compute node architecture.

┌─────────────────────────────────────────┐
│  LOGIN NODE                             │
│  - No GPUs                              │
│  - Job submission                       │
│  - File management                      │
│  - Code editing                         │
└─────────────────────────────────────────┘
              ↓
         (SLURM Scheduler)
              ↓
┌─────────────────────────────────────────┐
│  COMPUTE NODES (scs2041-2045)           │
│  - 8× A100 GPUs each                    │
│  - 64 CPUs                              │
│  - 515 GB RAM                           │
│  - Actual computation happens here      │
└─────────────────────────────────────────┘

┌─────────────────────────────────────────┐
│  LOGIN NODE                             │
│  - No GPUs                              │
│  - Job submission                       │
│  - File management                      │
│  - Code editing                         │
└─────────────────────────────────────────┘
              ↓
         (SLURM Scheduler)
              ↓
┌─────────────────────────────────────────┐
│  COMPUTE NODES (scs2041-2045)           │
│  - 8× A100 GPUs each                    │
│  - 64 CPUs                              │
│  - 515 GB RAM                           │
│  - Actual computation happens here      │
└─────────────────────────────────────────┘

You never SSH directly to compute nodes. All interaction happens through the SLURM scheduler.

Setting Up Remote Access

Prerequisites

University credentials and VPN
SSH client (built into Linux/macOS, PuTTY for Windows)
Basic command-line knowledge

Step 1 - Initial SSH Connection

# First connection (requires password)
ssh username@sunbird.swansea.ac.uk

# First connection (requires password)
ssh username@sunbird.swansea.ac.uk

Step 2 - Generate SSH Key Pair

SSH keys enable passwordless authentication and are essential for automated workflows.

On local machine

# Generate ED25519 key (modern, secure)
ssh-keygen -t ed25519 -C "your_email@swansea.ac.uk"

# Location - ~/.ssh/id_ed25519
# Passphrase - Optional (recommended for security)

# Generate ED25519 key (modern, secure)
ssh-keygen -t ed25519 -C "your_email@swansea.ac.uk"

# Location - ~/.ssh/id_ed25519
# Passphrase - Optional (recommended for security)

Step 3 - Copy Public Key to HPC

# Copy key to remote server
ssh-copy-id username@sunbird.swansea.ac.uk

# Manually (if ssh-copy-id unavailable):
cat ~/.ssh/id_ed25519.pub | ssh username@sunbird.swansea.ac.uk \
  "mkdir -p ~/.ssh && cat >> ~/.ssh/authorized_keys"

# Copy key to remote server
ssh-copy-id username@sunbird.swansea.ac.uk

# Manually (if ssh-copy-id unavailable):
cat ~/.ssh/id_ed25519.pub | ssh username@sunbird.swansea.ac.uk \
  "mkdir -p ~/.ssh && cat >> ~/.ssh/authorized_keys"

Step 4 - Set Correct Permissions

On the HPC login node

chmod 700 ~/.ssh
chmod 600 ~/.ssh/authorized_keys

chmod 700 ~/.ssh
chmod 600 ~/.ssh/authorized_keys

Step 5 - Configure SSH Client

Create ~/.ssh/config for easier connections.

Host sunbird
    HostName sunbird.swansea.ac.uk
    User your_username
    IdentityFile ~/.ssh/id_ed25519
    ServerAliveInterval 60
    ServerAliveCountMax 3

Host sunbird
    HostName sunbird.swansea.ac.uk
    User your_username
    IdentityFile ~/.ssh/id_ed25519
    ServerAliveInterval 60
    ServerAliveCountMax 3

Now connect with

ssh sunbird  # That's it!

ssh sunbird  # That's it!

Verification

# Test passwordless login
ssh sunbird "hostname"
# Should return sl2 (or similar login node)

# Test passwordless login
ssh sunbird "hostname"
# Should return sl2 (or similar login node)

HPC Environment

Login node (sl2)

Submit jobs (sbatch, srun)
Edit code, organize files
Compile programs
No GPUs available
No heavy computation (against policy)

Compute nodes (scs2041-2045)

GPUs available
Heavy computation
Accessed via job scheduler
No direct SSH access

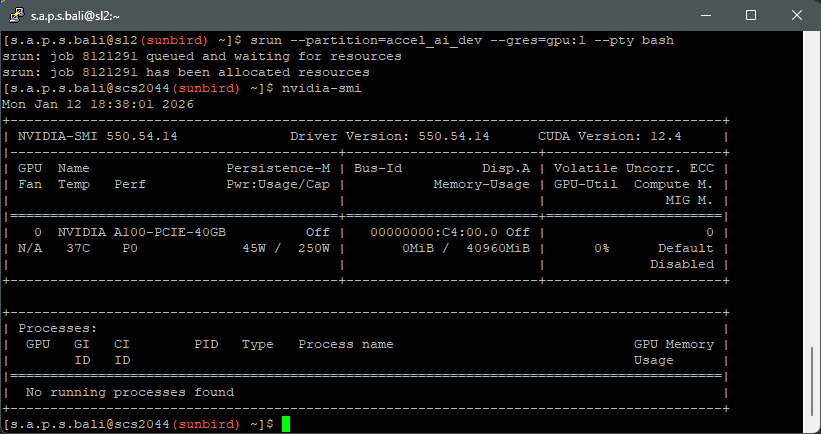

Testing GPU Access

This will FAIL on login node

[user@sl2 ~]$ nvidia-smi
-bash: nvidia-smi: command not found

[user@sl2 ~]$ nvidia-smi
-bash: nvidia-smi: command not found

This is expected! GPUs are only on compute nodes.

To verify GPU access, you must use srun to run the command on a compute node:

Module System

HPC systems use environment modules to manage software.

# List available modules
module avail

# Search for specific software
module avail cuda
module avail python

# Load modules
module load CUDA/12.4
module load anaconda/2024.06

# View loaded modules
module list

# Unload modules
module unload CUDA/12.4

# List available modules
module avail

# Search for specific software
module avail cuda
module avail python

# Load modules
module load CUDA/12.4
module load anaconda/2024.06

# View loaded modules
module list

# Unload modules
module unload CUDA/12.4

Example output

-------------------------------- /apps/modules/libraries ---------------------------------
CUDA/8.0    CUDA/10.1   CUDA/11.4   CUDA/12.4(default)
CUDA/9.0    CUDA/11.2   CUDA/11.6
CUDA/9.1    CUDA/11.3   CUDA/11.7

-------------------------------- /apps/modules/libraries ---------------------------------
CUDA/8.0    CUDA/10.1   CUDA/11.4   CUDA/12.4(default)
CUDA/9.0    CUDA/11.2   CUDA/11.6
CUDA/9.1    CUDA/11.3   CUDA/11.7

System Resources

Essential Commands

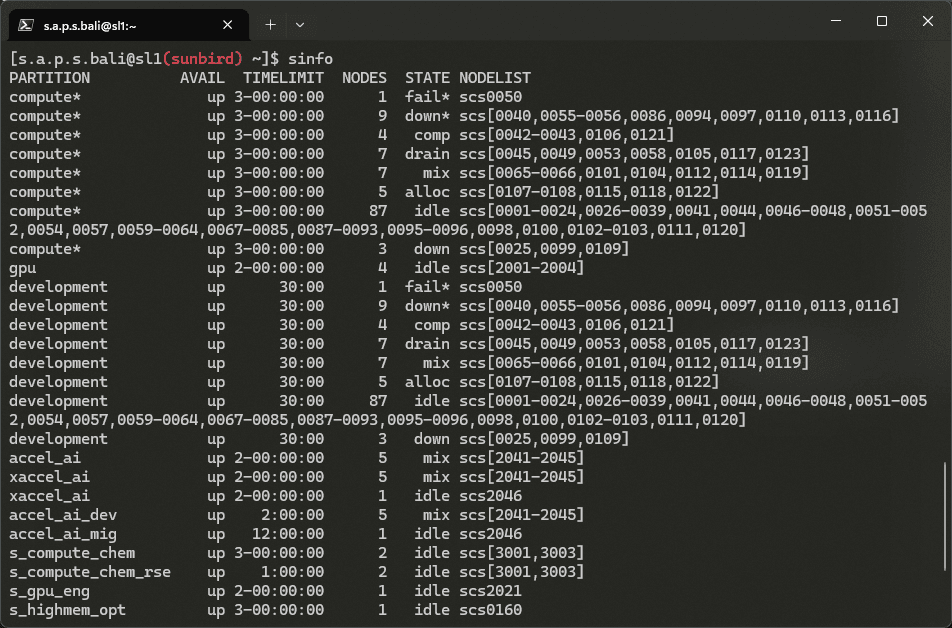

1. View partition info

sinfo

sinfo

Output

PARTITION   AVAIL  TIMELIMIT  NODES  STATE NODELIST
compute*       up 3-00:00:00     48  alloc scs[0026-0073]
compute*       up 3-00:00:00     44   idle scs[0001-0024,0059,0075-0078]
gpu            up 2-00:00:00      3    mix scs[2001-2003]
gpu            up 2-00:00:00      1   idle scs2004
accel_ai       up 2-00:00:00      5    mix scs[2041-2045]

PARTITION   AVAIL  TIMELIMIT  NODES  STATE NODELIST
compute*       up 3-00:00:00     48  alloc scs[0026-0073]
compute*       up 3-00:00:00     44   idle scs[0001-0024,0059,0075-0078]
gpu            up 2-00:00:00      3    mix scs[2001-2003]
gpu            up 2-00:00:00      1   idle scs2004
accel_ai       up 2-00:00:00      5    mix scs[2041-2045]

Key columns

PARTITION - Queue name
TIMELIMIT - Maximum job duration
STATE - Node status (idle/mix/alloc)
NODELIST - Which nodes

2. Detailed node info

sinfo -Nel

sinfo -Nel

Shows individual nodes with CPU, memory, and GPU counts.

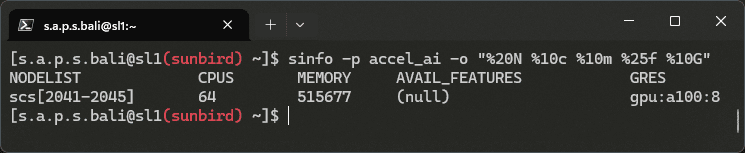

3. Check GPU availability

sinfo -p accel_ai -o "%20N %10c %10m %25f %10G"

sinfo -p accel_ai -o "%20N %10c %10m %25f %10G"

Output

NODELIST             CPUS       MEMORY     AVAIL_FEATURES            GRES
scs[2041-2045]       64         515677     (null)                    gpu:a100:8

NODELIST             CPUS       MEMORY     AVAIL_FEATURES            GRES
scs[2041-2045]       64         515677     (null)                    gpu:a100:8

Each node has 8 A100 GPUs
64 CPU cores
515 GB RAM

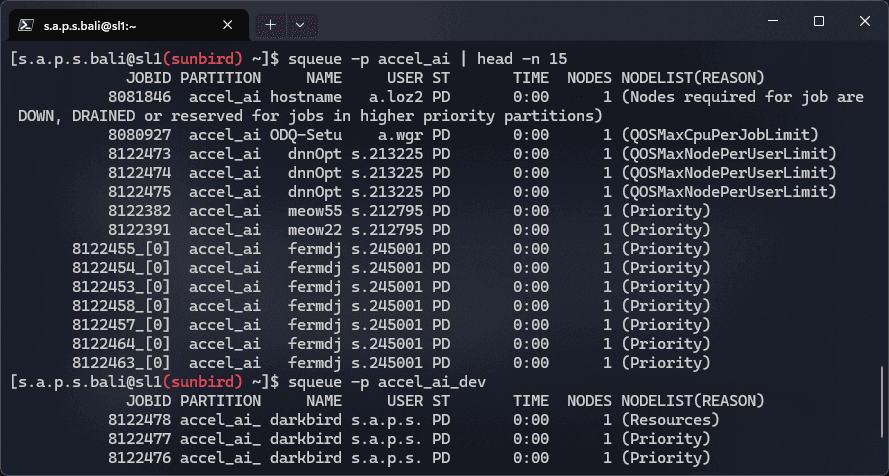

4. View current queue

squeue -p accel_ai

squeue -p accel_ai

See who's using resources and how long jobs have been running.

5. Check account limits

sacctmgr show user $USER withassoc

sacctmgr show user $USER withassoc

Shows QoS (Quality of Service) limits, including

Maximum GPUs per job
Maximum nodes
Priority level

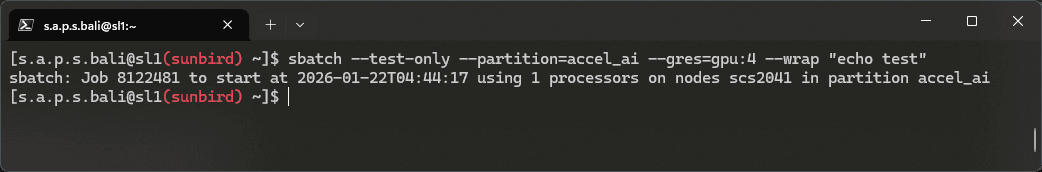

My limits

sbatch --test-only --partition=accel_ai --gres=gpu:4 --wrap "echo test"
# Success! Can request up to 4 GPUs

sbatch --test-only --partition=accel_ai --gres=gpu:5 --wrap "echo test"
# Error: QOSMaxGRESPerJob
# Cannot exceed 4 GPUs per job

sbatch --test-only --partition=accel_ai --gres=gpu:4 --wrap "echo test"
# Success! Can request up to 4 GPUs

sbatch --test-only --partition=accel_ai --gres=gpu:5 --wrap "echo test"
# Error: QOSMaxGRESPerJob
# Cannot exceed 4 GPUs per job

Job Scheduling with SLURM

SLURM (Simple Linux Utility for Resource Management) handles job scheduling, resource allocation, and queue management.

SLURM workflow

1. Write job script (.sh file)
2. Submit job - sbatch script.sh
3. Job enters queue (PENDING)
4. Scheduler allocates resources
5. Job runs (RUNNING)
6. Job completes (COMPLETED)
7. Results in output files

1. Write job script (.sh file)
2. Submit job - sbatch script.sh
3. Job enters queue (PENDING)
4. Scheduler allocates resources
5. Job runs (RUNNING)
6. Job completes (COMPLETED)
7. Results in output files

Job states

State	Abbreviation	Meaning
PENDING	PD	Waiting for resources
RUNNING	R	Currently executing
COMPLETED	CD	Finished successfully
FAILED	F	Exited with error
CANCELLED	CA	User cancelled

Basic SLURM commands

# Submit batch job
sbatch job_script.sh

# Submit interactive job
srun --partition=accel_ai_dev --gres=gpu:1 --pty bash

# Check job queue
squeue -u $USER

# Check all jobs in partition
squeue -p accel_ai

# Cancel job
scancel JOBID

# Cancel all our jobs
scancel -u $USER

# View job history
sacct -u $USER

# Detailed job info
scontrol show job JOBID

# Submit batch job
sbatch job_script.sh

# Submit interactive job
srun --partition=accel_ai_dev --gres=gpu:1 --pty bash

# Check job queue
squeue -u $USER

# Check all jobs in partition
squeue -p accel_ai

# Cancel job
scancel JOBID

# Cancel all our jobs
scancel -u $USER

# View job history
sacct -u $USER

# Detailed job info
scontrol show job JOBID

Understanding queue wait times

Reasons for pending jobs

squeue -u $USER -o "%.18i %.9P %.20j %.8u %.10T %.20R"

squeue -u $USER -o "%.18i %.9P %.20j %.8u %.10T %.20R"

Common reasons

(Resources) - No GPUs available
(Priority) - Other jobs have higher priority
(QOSMaxNodePerUserLimit) - You've hit your job limit
(QOSMaxGRESPerJob) - Requesting too many GPUs

Running Our First GPU Job

Creating a test script

scripts/test_gpu.py

#!/usr/bin/env python3
"""
Test script to verify CUDA access
"""
import torch
from datetime import datetime

print("="*60)
print(f"GPU Test - {datetime.now()}")
print("="*60)

# System info
print(f"\nPyTorch Version: {torch.__version__}")
print(f"CUDA Available: {torch.cuda.is_available()}")

if torch.cuda.is_available():
    print(f"CUDA Version: {torch.version.cuda}")
    print(f"GPU Count: {torch.cuda.device_count()}")
    print(f"GPU Name: {torch.cuda.get_device_name(0)}")

    # Get GPU properties
    props = torch.cuda.get_device_properties(0)
    print(f"GPU Memory: {props.total_memory / 1e9:.2f} GB")

    # Simple computation test
    print("\nRunning matrix multiplication test...")
    size = 10000
    a = torch.randn(size, size, device='cuda')
    b = torch.randn(size, size, device='cuda')
    c = torch.matmul(a, b)

    print(f"Successfully computed {size}×{size} matrix multiplication on GPU")
    print(f"GPU Memory Used: {torch.cuda.memory_allocated(0) / 1e9:.2f} GB")
else:
    print("CUDA not available!")

print("="*60)

#!/usr/bin/env python3
"""
Test script to verify CUDA access
"""
import torch
from datetime import datetime

print("="*60)
print(f"GPU Test - {datetime.now()}")
print("="*60)

# System info
print(f"\nPyTorch Version: {torch.__version__}")
print(f"CUDA Available: {torch.cuda.is_available()}")

if torch.cuda.is_available():
    print(f"CUDA Version: {torch.version.cuda}")
    print(f"GPU Count: {torch.cuda.device_count()}")
    print(f"GPU Name: {torch.cuda.get_device_name(0)}")

    # Get GPU properties
    props = torch.cuda.get_device_properties(0)
    print(f"GPU Memory: {props.total_memory / 1e9:.2f} GB")

    # Simple computation test
    print("\nRunning matrix multiplication test...")
    size = 10000
    a = torch.randn(size, size, device='cuda')
    b = torch.randn(size, size, device='cuda')
    c = torch.matmul(a, b)

    print(f"Successfully computed {size}×{size} matrix multiplication on GPU")
    print(f"GPU Memory Used: {torch.cuda.memory_allocated(0) / 1e9:.2f} GB")
else:
    print("CUDA not available!")

print("="*60)

Creating SLURM job script

jobs/test_1gpu.sh

#!/bin/bash
#SBATCH --job-name=gpu_test
#SBATCH --output=logs/gpu_test_%j.out
#SBATCH --error=logs/gpu_test_%j.err
#SBATCH --partition=accel_ai_dev
#SBATCH --gres=gpu:1
#SBATCH --cpus-per-task=8
#SBATCH --mem=64G
#SBATCH --time=00:30:00

echo "=========================================="
echo "Job ID: $SLURM_JOB_ID"
echo "Node: $SLURM_NODELIST"
echo "Start: $(date)"
echo "=========================================="

# Load modules
module load CUDA/12.4

# Setup Python environment
export PATH="$HOME/.local/bin:$PATH"
cd ~/project/myproject

# Run test
uv run python scripts/test_gpu.py

echo "=========================================="
echo "End: $(date)"
echo "=========================================="

#!/bin/bash
#SBATCH --job-name=gpu_test
#SBATCH --output=logs/gpu_test_%j.out
#SBATCH --error=logs/gpu_test_%j.err
#SBATCH --partition=accel_ai_dev
#SBATCH --gres=gpu:1
#SBATCH --cpus-per-task=8
#SBATCH --mem=64G
#SBATCH --time=00:30:00

echo "=========================================="
echo "Job ID: $SLURM_JOB_ID"
echo "Node: $SLURM_NODELIST"
echo "Start: $(date)"
echo "=========================================="

# Load modules
module load CUDA/12.4

# Setup Python environment
export PATH="$HOME/.local/bin:$PATH"
cd ~/project/myproject

# Run test
uv run python scripts/test_gpu.py

echo "=========================================="
echo "End: $(date)"
echo "=========================================="

SLURM directives

Directive	Purpose	Example
--job-name	Job identifier	gpu_test
--output	Standard output file	logs/test_%j.out
--error	Error output file	logs/test_%j.err
--partition	Which queue	accel_ai_dev
--gres	Generic resources (GPUs)	gpu:1
--cpus-per-task	CPU cores	8
--mem	RAM	64G
--time	Time limit	00:30:00

%j is replaced with the job ID automatically.

Submitting the Job

# Create logs directory
mkdir -p logs

# Submit job
sbatch jobs/test_1gpu.sh

# O/P
Submitted batch job 8122476

# Check status
squeue -u $USER

# O/P
JOBID  PARTITION    NAME      USER   ST  TIME  NODES
8122476 accel_ai_dev gpu_test  user   PD  0:00  1

# Create logs directory
mkdir -p logs

# Submit job
sbatch jobs/test_1gpu.sh

# O/P
Submitted batch job 8122476

# Check status
squeue -u $USER

# O/P
JOBID  PARTITION    NAME      USER   ST  TIME  NODES
8122476 accel_ai_dev gpu_test  user   PD  0:00  1

Monitoring job progress

# Watch queue (auto-refresh every 2 seconds)
watch -n 2 'squeue -u $USER'

# View log in real-time (once job starts)
tail -f logs/gpu_test_8122476.out

# Check job completion
sacct -j 8122476

# Watch queue (auto-refresh every 2 seconds)
watch -n 2 'squeue -u $USER'

# View log in real-time (once job starts)
tail -f logs/gpu_test_8122476.out

# Check job completion
sacct -j 8122476

Expected output

logs/gpu_test_8122476.out

==========================================
Job ID: 8122476
Node: scs2044
Start: Mon Jan 13 14:23:15 GMT 2026
==========================================
==========================================================
GPU Test - 2026-01-13 14:23:16.123456
==========================================================

PyTorch Version: 2.0.1+cu124
CUDA Available: True
CUDA Version: 12.4
GPU Count: 1
GPU Name: NVIDIA A100-PCIE-40GB
GPU Memory: 40.00 GB

Running matrix multiplication test...
Successfully computed 10000×10000 matrix multiplication on GPU
GPU Memory Used: 0.76 GB
==========================================================
==========================================
End: Mon Jan 13 14:23:18 GMT 2026
==========================================

==========================================
Job ID: 8122476
Node: scs2044
Start: Mon Jan 13 14:23:15 GMT 2026
==========================================
==========================================================
GPU Test - 2026-01-13 14:23:16.123456
==========================================================

PyTorch Version: 2.0.1+cu124
CUDA Available: True
CUDA Version: 12.4
GPU Count: 1
GPU Name: NVIDIA A100-PCIE-40GB
GPU Memory: 40.00 GB

Running matrix multiplication test...
Successfully computed 10000×10000 matrix multiplication on GPU
GPU Memory Used: 0.76 GB
==========================================================
==========================================
End: Mon Jan 13 14:23:18 GMT 2026
==========================================

Success! We've run our first GPU job on the HPC cluster.

Distributed Multi-GPU Training

One of the key advantages of HPC is the ability to scale across multiple GPUs. Here's how to progress from single-GPU to multi-GPU training.

GPU scaling strategy

Multi-GPU test script

scripts/test_distributed.py

#!/usr/bin/env python3
"""
Distributed training test using PyTorch DDP
"""
import torch
import torch.distributed as dist
import torch.multiprocessing as mp
from torch.nn.parallel import DistributedDataParallel as DDP
import os

def setup_distributed(rank, world_size):
    """Initialize distributed training"""
    os.environ['MASTER_ADDR'] = 'localhost'
    os.environ['MASTER_PORT'] = '29500'

    dist.init_process_group(
        backend='nccl',
        world_size=world_size,
        rank=rank
    )

def cleanup_distributed():
    dist.destroy_process_group()

def train_worker(rank, world_size):
    """Worker function for each GPU"""
    setup_distributed(rank, world_size)

    # Set device for this process
    torch.cuda.set_device(rank)
    device = torch.device(f'cuda:{rank}')

    if rank == 0:
        print(f"Running distributed training on {world_size} GPUs")

    print(f"[Rank {rank}] GPU: {torch.cuda.get_device_name(rank)}")

    # Simple computation on each GPU
    tensor = torch.randn(1000, 1000, device=device)
    result = torch.matmul(tensor, tensor)

    # Synchronize all processes
    dist.barrier()

    if rank == 0:
        print(f"Distributed computation successful on {world_size} GPUs")

    cleanup_distributed()

def main():
    world_size = torch.cuda.device_count()
    print(f"Detected {world_size} GPUs")

    # Spawn process for each GPU
    mp.spawn(
        train_worker,
        args=(world_size,),
        nprocs=world_size,
        join=True
    )

if __name__ == "__main__":
    main()

#!/usr/bin/env python3
"""
Distributed training test using PyTorch DDP
"""
import torch
import torch.distributed as dist
import torch.multiprocessing as mp
from torch.nn.parallel import DistributedDataParallel as DDP
import os

def setup_distributed(rank, world_size):
    """Initialize distributed training"""
    os.environ['MASTER_ADDR'] = 'localhost'
    os.environ['MASTER_PORT'] = '29500'

    dist.init_process_group(
        backend='nccl',
        world_size=world_size,
        rank=rank
    )

def cleanup_distributed():
    dist.destroy_process_group()

def train_worker(rank, world_size):
    """Worker function for each GPU"""
    setup_distributed(rank, world_size)

    # Set device for this process
    torch.cuda.set_device(rank)
    device = torch.device(f'cuda:{rank}')

    if rank == 0:
        print(f"Running distributed training on {world_size} GPUs")

    print(f"[Rank {rank}] GPU: {torch.cuda.get_device_name(rank)}")

    # Simple computation on each GPU
    tensor = torch.randn(1000, 1000, device=device)
    result = torch.matmul(tensor, tensor)

    # Synchronize all processes
    dist.barrier()

    if rank == 0:
        print(f"Distributed computation successful on {world_size} GPUs")

    cleanup_distributed()

def main():
    world_size = torch.cuda.device_count()
    print(f"Detected {world_size} GPUs")

    # Spawn process for each GPU
    mp.spawn(
        train_worker,
        args=(world_size,),
        nprocs=world_size,
        join=True
    )

if __name__ == "__main__":
    main()

4-GPU job script

jobs/test_4gpu.sh

#!/bin/bash
#SBATCH --job-name=test_4gpu
#SBATCH --output=logs/test_4gpu_%j.out
#SBATCH --error=logs/test_4gpu_%j.err
#SBATCH --partition=accel_ai_dev
#SBATCH --gres=gpu:4                # Request 4 GPUs
#SBATCH --cpus-per-task=32          # 8 CPUs per GPU
#SBATCH --mem=256G                  # 64 GB per GPU
#SBATCH --time=01:00:00

echo "=========================================="
echo "4-GPU Distributed Training Test"
echo "Job ID: $SLURM_JOB_ID"
echo "Node: $SLURM_NODELIST"
echo "GPUs: $SLURM_GPUS_ON_NODE"
echo "=========================================="

# Environment setup
module load CUDA/12.4
export PATH="$HOME/.local/bin:$PATH"
cd ~/project/myproject

# Show all GPUs
nvidia-smi

# Run distributed test
uv run python scripts/test_distributed.py

echo "=========================================="
echo "Test Complete"
echo "=========================================="

#!/bin/bash
#SBATCH --job-name=test_4gpu
#SBATCH --output=logs/test_4gpu_%j.out
#SBATCH --error=logs/test_4gpu_%j.err
#SBATCH --partition=accel_ai_dev
#SBATCH --gres=gpu:4                # Request 4 GPUs
#SBATCH --cpus-per-task=32          # 8 CPUs per GPU
#SBATCH --mem=256G                  # 64 GB per GPU
#SBATCH --time=01:00:00

echo "=========================================="
echo "4-GPU Distributed Training Test"
echo "Job ID: $SLURM_JOB_ID"
echo "Node: $SLURM_NODELIST"
echo "GPUs: $SLURM_GPUS_ON_NODE"
echo "=========================================="

# Environment setup
module load CUDA/12.4
export PATH="$HOME/.local/bin:$PATH"
cd ~/project/myproject

# Show all GPUs
nvidia-smi

# Run distributed test
uv run python scripts/test_distributed.py

echo "=========================================="
echo "Test Complete"
echo "=========================================="

Scaling analysis

After running 1, 2, and 4 GPU tests, we can compare performance.

| GPUs | Time (s) | Speedup | Efficiency |
|------|----------|---------|------------|
| 1    | 120      | 1.0×    | 100%       |
| 2    | 62       | 1.94×   | ~97%        |
| 4    | 32       | 3.75×   | ~94%        |

| GPUs | Time (s) | Speedup | Efficiency |
|------|----------|---------|------------|
| 1    | 120      | 1.0×    | 100%       |
| 2    | 62       | 1.94×   | ~97%        |
| 4    | 32       | 3.75×   | ~94%        |

Scaling efficiency = (Speedup / # GPUs) × 100%

This demonstrates near-linear scaling!

File Management and Workflows

Development workflow

Recommended approach

Local Machine (Windows/Mac/Linux)
    ↓
  Edit code in IDE (VS Code, PyCharm)
  Test on small data (CPU)
  Version control with Git
    ↓
  Transfer to HPC (rsync/scp/Git)
    ↓
HPC Login Node
    ↓
  Submit jobs to compute nodes
    ↓
HPC Compute Nodes
    ↓
  Training happens here
  Results saved
    ↓
  Download results back to local
    ↓
Local Machine
    ↓
  Analyze results, visualize
  Update code, repeat

Local Machine (Windows/Mac/Linux)
    ↓
  Edit code in IDE (VS Code, PyCharm)
  Test on small data (CPU)
  Version control with Git
    ↓
  Transfer to HPC (rsync/scp/Git)
    ↓
HPC Login Node
    ↓
  Submit jobs to compute nodes
    ↓
HPC Compute Nodes
    ↓
  Training happens here
  Results saved
    ↓
  Download results back to local
    ↓
Local Machine
    ↓
  Analyze results, visualize
  Update code, repeat

File transfer methods

Option 1 - rsync (Best for Linux/Mac/WSL) and personal fav

# Upload project to HPC
rsync -avz --exclude-from=.rsyncignore \
  ./myproject/ username@sunbird:~/project/myproject/

# Download results from HPC
rsync -avz username@sunbird:~/project/myproject/results/ \
  ./results/

# Upload project to HPC
rsync -avz --exclude-from=.rsyncignore \
  ./myproject/ username@sunbird:~/project/myproject/

# Download results from HPC
rsync -avz username@sunbird:~/project/myproject/results/ \
  ./results/

Option 2 - scp (Quick single files)

# Upload file
scp script.py username@sunbird:~/project/myproject/scripts/

# Download file
scp username@sunbird:~/project/myproject/results/model.pth ./

# Upload file
scp script.py username@sunbird:~/project/myproject/scripts/

# Download file
scp username@sunbird:~/project/myproject/results/model.pth ./

Option 3 - Git (Best for code)

# On local machine
git push origin main

# On HPC
git pull origin main

# On local machine
git push origin main

# On HPC
git pull origin main

Option 4 - WinSCP (Windows GUI)

Graphical interface
Drag and drop
Good for large files
Download - https://winscp.net/

Exclusion Patterns

.rsyncignore

# Version control
.git/

# Python
__pycache__/
*.pyc
.venv/
venv/

# Large data (upload separately)
data/*.jpg
data/*.png
*.tar.gz
*.zip

# Results (download, don't upload)
results/
logs/
checkpoints/

# IDE
.vscode/
.idea/

# Version control
.git/

# Python
__pycache__/
*.pyc
.venv/
venv/

# Large data (upload separately)
data/*.jpg
data/*.png
*.tar.gz
*.zip

# Results (download, don't upload)
results/
logs/
checkpoints/

# IDE
.vscode/
.idea/

Best Practices and Lessons Learned

1. Respect Shared Resources

Use accel_ai_dev for testing (2h limit)
Use accel_ai for production (48h limit)
Request only resources you need
Cancel jobs you no longer need
Start small and scale up

DON'T

Run heavy computation on login nodes
Request maximum resources "just in case"
Leave forgotten jobs in queue
Submit hundreds of jobs simultaneously

2. Understand Queue Dynamics

Observation from real queue

$ squeue -p accel_ai
# 25 jobs running
# 18 jobs from single user
# Some jobs running 24+ hours
# My 3 jobs: PENDING (Resources)

$ squeue -p accel_ai
# 25 jobs running
# 18 jobs from single user
# Some jobs running 24+ hours
# My 3 jobs: PENDING (Resources)

Lessons

Popular systems have wait times
Some users submit many jobs (fair-share limits help)
Long-running jobs occupy resources for days
Plan for wait times in your schedule

Strategy

Submit jobs overnight (less competition)
Use --test-only to estimate start time
Have backup work while waiting

3. Debugging on HPC

Common issues and solutions

Problem	Solution
Job fails immediately	Check error log - logs/job_*.err
Out of memory	Reduce batch size or request more RAM
CUDA not found	Load CUDA module - module load CUDA/12.4
Package import fails	Check environment - uv run python -c "import torch"
Job pending forever	Check - squeue -u $USER -o "%.20R"

4. Monitoring Jobs

Useful commands

# Real-time queue monitoring
watch -n 5 'squeue -u $USER'

# Job resource usage
sstat -j JOBID --format=JobID,MaxRSS,MaxVMSize,AveCPU

# Historical job info
sacct -j JOBID --format=JobID,JobName,Elapsed,State,MaxRSS

# Live log viewing
tail -f logs/job_12345.out

# Check GPU utilization (in interactive session)
watch -n 1 nvidia-smi

# Real-time queue monitoring
watch -n 5 'squeue -u $USER'

# Job resource usage
sstat -j JOBID --format=JobID,MaxRSS,MaxVMSize,AveCPU

# Historical job info
sacct -j JOBID --format=JobID,JobName,Elapsed,State,MaxRSS

# Live log viewing
tail -f logs/job_12345.out

# Check GPU utilization (in interactive session)
watch -n 1 nvidia-smi

5. Environment management

Lessons learned with UV package manager

# PyTorch requires special index
uv pip install torch --index-url https://download.pytorch.org/whl/cu124

# Standard packages work normally
uv pip install numpy pandas matplotlib

# Verify installation
uv run python -c "import torch; print(torch.cuda.is_available())"

# PyTorch requires special index
uv pip install torch --index-url https://download.pytorch.org/whl/cu124

# Standard packages work normally
uv pip install numpy pandas matplotlib

# Verify installation
uv run python -c "import torch; print(torch.cuda.is_available())"

6. Documentation is critical

What to document

Job IDs and purposes
Resource requests (GPUs, RAM, time)
Results and performance metrics
Issues encountered and solutions
Scaling efficiency measurements

Example log

Job 8122476: 1-GPU test
- Partition: accel_ai_dev
- Resources: 1 GPU, 8 CPUs, 64G RAM
- Runtime: 3 minutes
- Result: Success, 0.76 GB GPU memory

Job 8122477: 2-GPU test
- Partition: accel_ai_dev
- Resources: 2 GPUs, 16 CPUs, 128G RAM
- Runtime: Pending (Resources)
- Wait time: ~4 hours

Job 8122476: 1-GPU test
- Partition: accel_ai_dev
- Resources: 1 GPU, 8 CPUs, 64G RAM
- Runtime: 3 minutes
- Result: Success, 0.76 GB GPU memory

Job 8122477: 2-GPU test
- Partition: accel_ai_dev
- Resources: 2 GPUs, 16 CPUs, 128G RAM
- Runtime: Pending (Resources)
- Wait time: ~4 hours

7. Real-world challenges

Connection timeouts in VS Code terminal

Issue - SSH works in standalone terminal but freezes in VS Code
Solution - Use external terminal (Windows Terminal) for interactive SSH
Lesson - IDE terminals have limitations with interactive sessions

Old glibc version

Issue - Sunbird runs CentOS 7 (glibc 2.17), modern software needs 2.28+
Solution - Use PyTorch's CUDA-specific wheel repository
Lesson - HPC systems prioritize stability over latest OS versions

Queue wait times

Issue - Jobs pending for hours due to resource contention
Solution - Submit overnight, use development partition for testing
Lesson - Shared resources require patience and planning

Conclusion

Working with HPC infrastructure requires a different mindset than cloud computing or local development.

Appendix - Quick Reference

Essential Commands Cheat Sheet

# Connection
ssh sunbird

# Queue Management
sbatch job.sh          # Submit job
squeue -u $USER        # Check your jobs
scancel JOBID          # Cancel job
sacct -u $USER         # Job history

# System Info
sinfo                  # Partition status
sinfo -Nel             # Detailed nodes
module avail           # Available software
module load X          # Load module

# File Transfer
rsync -avz local/ sunbird:remote/    # Upload
rsync -avz sunbird:remote/ local/    # Download
scp file sunbird:~/                  # Quick upload

# Monitoring
tail -f logs/job.out   # Watch log
watch squeue -u $USER  # Watch queue
nvidia-smi             # GPU status (compute node only)

# Connection
ssh sunbird

# Queue Management
sbatch job.sh          # Submit job
squeue -u $USER        # Check your jobs
scancel JOBID          # Cancel job
sacct -u $USER         # Job history

# System Info
sinfo                  # Partition status
sinfo -Nel             # Detailed nodes
module avail           # Available software
module load X          # Load module

# File Transfer
rsync -avz local/ sunbird:remote/    # Upload
rsync -avz sunbird:remote/ local/    # Download
scp file sunbird:~/                  # Quick upload

# Monitoring
tail -f logs/job.out   # Watch log
watch squeue -u $USER  # Watch queue
nvidia-smi             # GPU status (compute node only)

Useful Links

SLURM Documentation - https://slurm.schedmd.com/
PyTorch Distributed - https://pytorch.org/tutorials/beginner/dist_overview.html
HPC Best Practices - https://hpc-wiki.info/

About this guide

This guide documents real experiences setting up and using HPC infrastructure for deep learning research. All examples are based on actual commands, outputs, and challenges encountered on Swansea University's Sunbird cluster.
